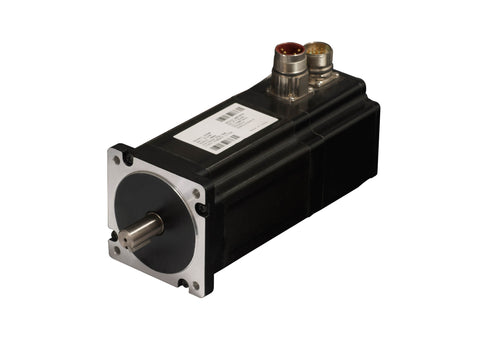

ME086AS BLDC Series Motor
General Specfications
- Class F insulation
- No. of phases: 3
- nominal 3000 RPM at rated torque
- UL Certified
- IP Compliant Packaging Options
- Servo Applications
- Encoder Options and Resolutions Available
- integrated hall sensors
- CE approved
- RoHS compliant
We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are also available upon request.
This product has lead-time of 3-4 weeks for new orders.
Available models
ME086AS1XX, l=135mm, 3000rpm, 0.7 Nm
ME086AS2XX, l=160mm, 3000rpm, 1.4 Nm
ME042AS3XX, l=190mm, 3000rpm, 2.1 Nm
Documentation
Motor Drawings
