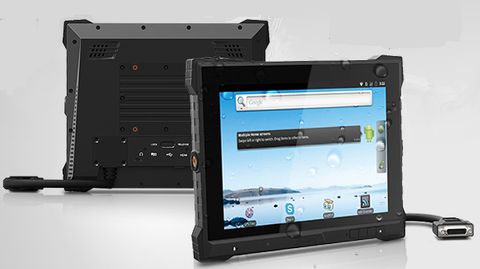

9.7" Rugged Mobile Data Terminal Android (POE, RJ45, CAN, RS485)

This 9.7" rugged mobile data terminal panel PC is designed to operate in outdoor or harsh environments making it ideal for trucking & fleet management, outdoor kiosks and control automation. This versatile unit supports a wide range of interfaces including: PoE, Gigabit Ethernet/RJ45, RS232,RS485,RS422,Gpio,CAN bus,


The unit features a powerful 1.2Gh quad core ARM CPU with upto 2GB of RAM delivering optimal performance for demanding applications. The display is a high brightness 350 nits (cd/m2) with capacitive touch high resolution screen that allows it to operate in outside environments. The housing is rugged IP64 rated for dust and shock.


Key Features


  • 9.7”1024x768 IPS Screen, Capactive Touch
  • Powerful Freescale iMX.6 Quad core 1GHz CPU
  • PoE (Power over Ethernet) Gbite Ethernet
  • Rich Extensions: RS232,RS485,RS422,Gpio,CAN bus,LAN
  • Built-in 7.4V 5000mAh battery
  • 2G/3G/4G/WiFi/Bluetooth/GPS/Camera
  • OS :Android 4.3.1/Linux Debian 7.0/WinCE 7.0



CPU  Freescale iMX.6 Quad core 1.0GHz
Core  4xARM Cortex-A9 up to 1.2GHz per core
RAM  DDR3-1066(533MHz) 1GB, up to 2GB
ROM  8GB Flash
GPU  3D 200Mtri/s 1000Mpxl/s, OpenGL ES 3.0 & Halti, CL EP
OS (Optional)  Android 4.3.1/Linux Debian 7.0/WinCE 7.0
LCD 9.1" LED backlit
Resolution   1024x768
 Aspect ratio   4:3
 Touch panel   Capacitive Touch
 LCD panel Brightness  350 cd/m2
 Viewing Angle (typical, from center) 178°/178° (H/V)
 Contrast Ratio  900:1

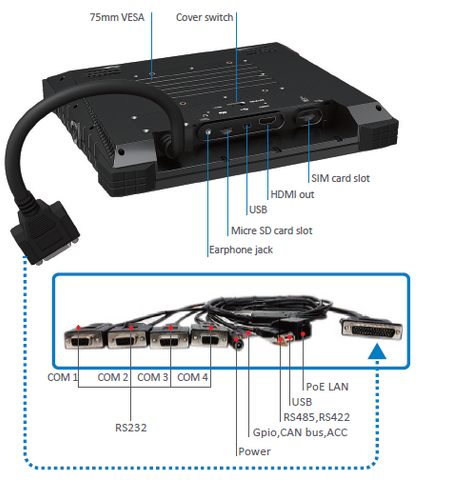

 Output Video signal connector  Mini D-Sub 15-Pin VGA type and HDMI type (optional)
 Input interface
RS232x4/RS232x3, RS485×1/RS232×2, RS422×2 RS485x1
(Optional:RS485/RS422 interface)
 Net interface   LAN Ethernet x1,Gpio Inputx4, Gpio Outputx6, CAN Bus x1
 USB  USB Device 2.0 x1, USB host 2.0 x1
   HDMI Output x1,Micro SD card slot x1,Earphone jack x1
 Power Supply Type

 DC  9 - 36V wide voltage

 Current 1.0 ~ 2.0A

Power Consumption < 22W (Charging) < 9W Regular

 Temperature  Operating: -20°C to 60°C ;Storage -20°C to 65°C
 IP Rating  IP64 (Dust & Waterproof)
 Mounting   VESA (75x75mm)
 Dimensions 252x211x37mm
 Humidity (non condensing)   Operating: 20%-80%; Storage: 10%-90%
 Weight (approx.)  Actual: 1.35 kg Shipping: 2.0 kg
 Mounting Options  75 mm VESA mount
 Standard Accessories
Extended Cable
DC Adapter
Mini USB Cable
Touch Pen
Driver CD
 Optional Accessories


5000mAh Battery
Gimbal Bracket
VESA 75mm rail slot
75mm VESA Floding Bracket


 Optional Functions

  Built-in: PoE (Power over Ethernet)

3G,WIFI 802.11 b/g/n+Bluetooth
Camera,ACC,Battery(7.4V 5000mAh)
