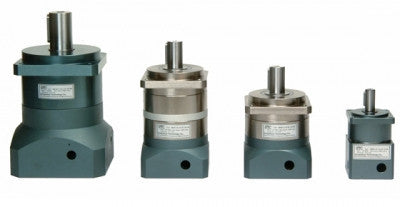

Planetary Gearbox GNP40

MUST CONTACT US FOR PRICING BEFORE PLACING ORDERS

Features

Precision: 20 arc-min
Available reduction ratios from 1:3 to 1:1000
Design to use with various servomotors
Sealed shut design; self-lubricated and easy to install
High torque capacity and low inertia
Custom long shaft design available

    Specifications

    Descriptions \ Model L1

    GNP40-4

    GNP40-5

    GNP40-7

    GNP40-10
    Continuous Torque
    (kgf*m/Nm)    		 1/9.8 1.1/10.78 1/9.8 0.9/8.82
    Max. Torque
    (kgf*m/Nm)    		 3/29.4 3.3/32.34 3/29.4 2.7/26.46
    Permissible Radial Force
    (kgf)    		 70 70 70 70
    Inertia
    (kg*c㎡)    		 0.049 0.049 0.049 0.049
    Input Shaft Diameter
    (mm)    		 5~8 5~8 5~8 5~8
    Weight L1 (kg) 0.3 0.3 0.3 0.3
    Weight L2 (kg) 0.4 0.4 0.4 0.4
    Weight L3 (kg) 0.6 0.6 0.6 0.6

    Reduction Ratios

    Models \ Stages L1 L2
    GNP40 4,5,7,10 12,15,16,20,21,25,28,30,35,40,49,50,70

    Downloads

    GNP40 SERIES

    50W-100W
    		 GNP40L1-8-30-46-M4 GNP40L2-8-30-46-M4
    GNP40L3-8-30-46-M4
