ME042AS BLDC Series Motor

These BLDC motors are a great match to the TRINAMIC family of medium and high current BLDC motor modules.


  • No. of poles: 8
  • No. of phases: 3
  • nominal 3000 RPM at rated torque
  • stepper compatible 42mm flange
  • 5mm axis diameter, 24mm length
  • typical 24V operating voltage
  • up to 48V possible
  • integrated hall sensors
  • CE approved
  • RoHS compliant

We can also customize the winding to perfectly match your voltage, current, and maximum operating speed. Special shaft modifications, cables and connectors are also available upon request.

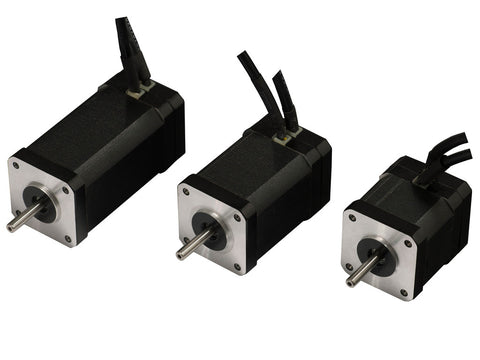

Available models

ME042AS100, l=50mm, 3000rpm, 0.1 Nm
ME042AS200, l=68mm, 3000rpm, 0.2 Nm
ME042AS300, l=88mm, 3000rpm, 0.3 Nm
