TMC239A

TMC239A

FREE SHIPPING IN US 48

In house technical support provided for all Trinamic products

1000 pc pricing @ $7.08

Datasheet
TMC236 ShortSpec
TMC236 ShortSpecTMC239_datasheet.pdf
(1.15MB 17-Oct-13)



Product Details

Description

The TMC239 is a smart high current microstepping driver for bipolar stepper motors. It provides an SPI™ interface as well as the classical analog / digital control. A full set of protection and diagnostic features makes this device very rugged. It directly drives external MOSFETs for currents up to 6A. This way it reaches an extremely high efficiency and allows driving of a high motor current without cooling measures even at high environment temperatures. With the new chip-scale QFN package a 4A motor driver can be realized on the size of a stamp!

The high motor current makes this device ideal for miniaturized highly dynamic and high torque drive systems.

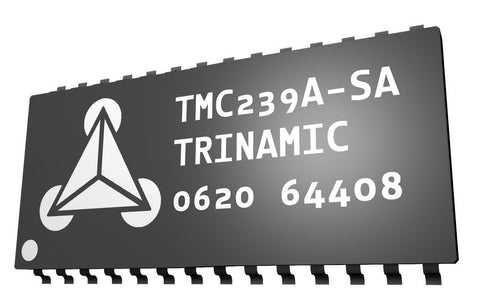

TMC239A-SA

TMC239A-LA

Interfaces: SPI SPI
No. Axes: 1 1
Product State: active active
Supported Motor Type: Stepper Stepper
chopSync™
stallGuard™
Logic Supply: 3.3...5V 3.3...5V
Motor Supply: 7...34V 7...34V
Package: SO28 QFN32 (7x7)

TMC429+TMC24x-EVAL



TMC429+TMC24x-EVAL allows you to explore all functions of the SPI™ chipset using the TMC429 motion controller and TMC236/246 and TMC239/249 drivers. It is equipped with the TMC246A-PA, TMC249A-SA and TMC248-LA motor drivers for high performance motor control with stallGuard™ feature. You will learn everything about the usage and features of the SPI™ chipset and get the possibility to explore your motion control application and to optimize its parameters. The evaluation board comes with a PC software which gives you access to every bit of the chipset. The TMC429+TMC24x-EVAL is a complete "plug and play" solution, additionally only a motor, a PC and a power supply are required!

Downloads



Application Notes

 FileSizeModified
Calc_PowerDissipation.xls 22kB 17-Oct-13
SPI_vs_Step_Dir.pdf 26.22kB 17-Oct-13
TMC236_246_239_249_FAQ.pdf 429.35kB 17-Oct-13
TMC239_249_hv_schematics.pdf 244.46kB 17-Oct-13
TMC239_sample_layout.zip 173.72kB 17-Oct-13
TMC2x9A-LA_layoutsample.pdf 149.31kB 17-Oct-13
VHDL_StepDir-23x_24x_SPI.zip 139.72kB 17-Oct-13
tmc236_example.c 3.32kB 17-Oct-13


Datasheet

 FileSizeModified
TMC236 ShortSpecTMC239_datasheet.pdfSmart Power Microstepping PWM Motor Driver with external power transistors and protection, diagnostics and SPI Interface 1.15MB 17-Oct-13


Documentation

 FileSizeModified
TMC239_ShortSpec.pdf 457.04kB 17-Oct-13
TMC239_datasheet.pdf 1.15MB 17-Oct-13
