TMC236A-PA

TMC236A

 FREE SHIPPING IN US 48

In house technical support provided for all Trinamic products

Datasheet
TMC236 ShortSpec
TMC236 ShortSpecTMC236_ShortSpec.pdf
(565.34kB 17-Oct-13)



Product Details

Description



The TMC236 is a smart power microstepping driver for bipolar stepper motors. It provides an SPI™ interface as well as the classical analog / digital control. A full set of protection and diagnostic features makes this device very rugged. The integrated low-RDS-ON TrenchFET® power MOSFETs give an extremely high efficiency and allow driving of a high motor current of up to 1.5A per phase without cooling measures even at high environment temperatures. The small footprint and high efficiency make the device a perfect solution for embedded motion control and even for battery powered designs.

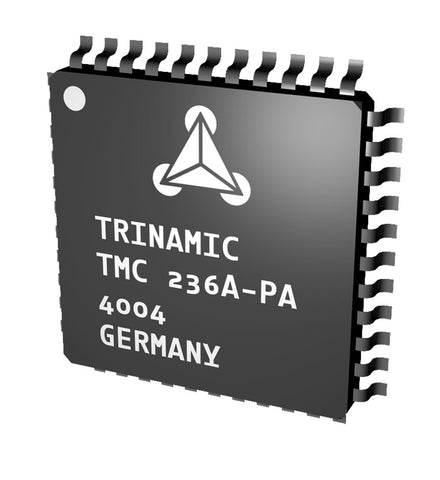

TMC236A-PA

Interfaces: SPI
No. Axes: 1
Phase Current, RMS: 1.1A
Phase Current, peak: 1.5A
Product State: active
RDSon HS: 220mΩ(2)
RDSon LS: 120mΩ(1)
Supported Motor Type: Stepper
chopSync™
Logic Supply: 3.3...5V
Motor Supply: 7...34V
Package: QFP44





Downloads

Application Notes

  File Size Modified
Calc_PowerDissipation.xls 22kB 17-Oct-13
SDtoSPI.c 6.09kB 17-Oct-13
SPI_vs_Step_Dir.pdf 26.22kB 17-Oct-13
TMC236_246_239_249_FAQ.pdf 429.35kB 17-Oct-13
TMC236_sample_layout.zip 144.2kB 17-Oct-13
TMC236_to_L9935_Adapter.pdf 141.03kB 17-Oct-13
VHDL_StepDir-23x_24x_SPI.zip 139.72kB 17-Oct-13
tmc236_example.c 3.32kB 17-Oct-13
tmc236_example_MD.c 2.71kB 17-Oct-13


Datasheet

  File Size Modified
TMC236 ShortSpecTMC236_ShortSpec.pdfSmart Power Microstepping PWM Motor Driver with protection, diagnostics and SPI Interface 565.34kB 17-Oct-13


Documentation

  File Size Modified
Reflow_Profile_LF-Package.PDF 232.23kB 17-Oct-13
TMC236_datasheet.pdf 605.03kB 17-Oct-13
