TMCM-170
TMCM-170
FREE SHIPPING U.S. 48
In house technical support provided for all Trinamic products
Order the TMCM-170 cable kit here
| Datasheet | |
|---|---|
|
TMCM-170_ShortSpec.pdf (368.57kB 18-Oct-13) |
|
Product Details
Desciption

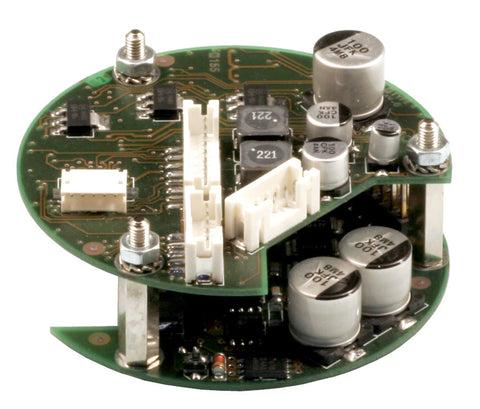

The TMCM-171 is a controller / driver module for high performance servo drives based on brushless DC motors. It combines the high resolution of a stepper motor coupled with the high dynamic, high velocity and high reliability of a BLDC drive. The motor and switches can be connected easily with pluggable screw terminals. A build-in ramp generator allows parameterized smooth positioning. The TMCM-171 supports BLDC motors with nearly any number of poles and incremental encoders with nearly any resolution.The TMCM-171 integrates a velocity regulator, a position regulator and a ramp generator. The module can be controlled remotely via CAN or RS-485 interface. Additionally, the TMCM-171 is equipped with a step direction interface. Stand alone operation (either via TMCL program or via analog control) is also possible.
TMCM-170 |
|
| Interfaces: | CAN, RS232, RS485 |
| No. Axes: | 1 |
| Phase Current, RMS: | 10A |
| Phase Current, peak: | 14A |
| Product State: | active |
| Supported Motor Type: | BLDC |
| Velocity Ramps: | trapezoidal |
| closedLoop | |
| position mode | |
| velocity mode | |
| Motor Supply: | 12...48V |
| Length: | 61mm |
| Width: | 61mm |
Downloads
Datasheet |
|||
| File | Size | Modified | |
|---|---|---|---|
 |
TMCM-170_ShortSpec.pdf | 368.57kB | 18-Oct-13 |
Documentation |
|||
| File | Size | Modified | |
|
TMCM-170_ShortSpec.pdf | 368.57kB | 18-Oct-13 |
|
TMCM-170_manual.pdf | 637.11kB | 18-Oct-13 |
|
TMCM-170_programming.pdf | 173.01kB | 18-Oct-13 |
Software |
|||
| File | Size | Modified | |
 |
TMCM170.exe | 812.5kB | 18-Oct-13 |
 |
TMCM170_V108.hex | 88.42kB | 18-Oct-13 |
|
TMCM170_V109.hex | 88.76kB | 18-Oct-13 |
|
TMCM170_V112.hex | 89.02kB | 18-Oct-13 |
