TMCM-351-E

TMCM-351

FREE SHIPPING U.S. 48

In house technical support provided for all Trinamic products.

Datasheet

TMCM-351_hardware_manual.pdf
(986.01kB 17-Oct-13)

Product Details

Description

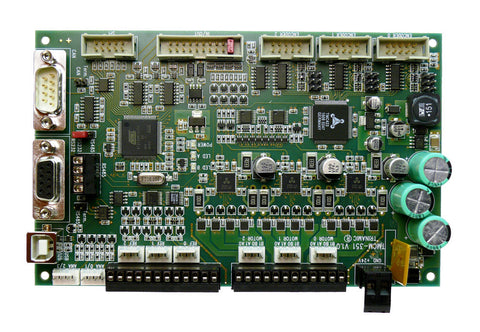

The TMCM-351 is a compact and powerful triple axis 2-phase stepper motor controller and driver module. It provides a complete motion control solution at a small size for embedded applications. Using the integrated additional I/Os it even can do complete system control applications. The motors and switches can be connected easily with screw or crimp style connectors. The connection of the I/Os and encoder can be made via two row header. All time critical operations, e.g. ramp calculation are performed on board. With the stallGuard™ feature it is possible to detect overload and stall of the motor. The firmware of the module can be updated via the serial interface. The TMCM-351-E is equipped with an 3-axis incremental encoder interface for position monitoring. The "-TMCL™" firmware option comes with the PC based software development environment TMCL-IDE. Using predefined TMCL (Trinamic Motion Control Language) high level commands like "move to position" or "constant rotation" rapid and fast development of motion control applications is guaranteed. Host communication is possible via USB, RS-232, RS-485 or CAN interface. A user TMCL program can be stored in the on board EEPROM for stand-alone operation. With the "-CANopen" firmware option it is possible to operate the module in CANopen networks together with other equipment.



TMCM-351

Interfaces: a/b/n incremental, CAN, RS485, USB
No. Axes: 3
Phase Current, RMS: 2.8A
Phase Current, peak: 3.9A
Product State: active
Microstep Resolution: 1...64
Supported Motor Type: Stepper
Velocity Ramps: trapezoidal
chopSync™
stallGuard™
Motor Supply: 7...28.5V
Length: 160mm
Width: 100mm

Downloads

Datasheet

 FileSizeModified
TMCM-351_hardware_manual.pdf 986.01kB 17-Oct-13


Documentation

 FileSizeModified
TMCM-351_ShortSpec.pdf 519.13kB 17-Oct-13
TMCM-351_TMCL_firmware_manual.pdf 1.9MB 17-Oct-13
TMCM-351_hardware_manual.pdf 986.01kB 17-Oct-13


Software

 FileSizeModified
TMCM-351.inf 3.25kB 17-Oct-13
TMCM-351_CANopen_V309.zip 110.66kB 17-Oct-13
TMCM-351_V441.hex 115.65kB 17-Oct-13
TMCM-351_V442.hex 115.65kB 17-Oct-13
TMCM351_CANopen_V303.zip 100.19kB 17-Oct-13
TMCM351_CANopen_V305.zip 106.76kB 17-Oct-13
